中空玻璃機械雙組份打膠機工藝特點

瀏覽:0
1、高能雙組份打膠機主要基料泵、固化劑、比例泵、基料泵升降系統、調比結構、混膠系統、氣動系統、液壓系統及電氣系統組成。
1. High-energy two-component glue beater is composed of base material pump, curing agent, proportion pump, lifting system of base material pump, mixing system, pneumatic system, hydraulic system and electrical system.
2、基料泵、固化劑泵及比例泵均采用特殊的高壓柱塞泵,雙向等量供料,基料泵由液壓系統驅動,固化劑泵由氣動馬達驅動。二者輔以增壓供料壓盤,充分保證高黏度流體的滿腔輸送,基料壓入并增高高壓,固化劑壓入并增壓,再送比例泵,固化劑的流量由調比機構調節,二種組份同時送入混合器,充分混合后到達擠膠槍。
2. Material pump, curing agent pump and proportional pump all adopt special high-pressure plunger pump, two-way equal-quantity feeding. Material pump is driven by hydraulic system, curing agent pump is driven by pneumatic motor. They are supplemented by a pressurized feeding pressure plate to fully ensure the full cavity transportation of high viscosity fluids, the base material is pressed and increased to high pressure, the curing agent is pressed and pressurized, and then sent to the proportional pump. The flow rate of the curing agent is regulated by the ratio adjusting mechanism, and the two components are sent to the mixer at the same time.
3、固化劑過濾器下端出口及混合器進料處均設有高壓球閥,沖膠泄壓用,混合器上設有單向針閥,不但使混膠更加均勻,而且防止兩種組份互竄,將通道固化堵塞。

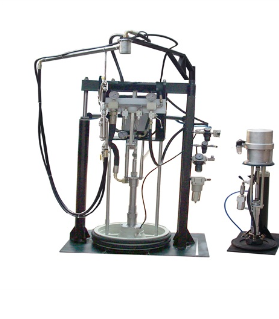

雙組份打膠機
3. A high-pressure ball valve is installed at the lower end outlet of the curing agent filter and at the feeding place of the mixer, and a one-way needle valve is arranged on the mixer for pressure relief. The mixer not only makes the mixture more uniform, but also prevents the two components from channeling each other and solidifies and blocks the channel.
4、升降系統采用手動轉閥控制,兩種組份的比例調節,可通過調整滑塊在擺動桿上的位置來改變,當達到要求的刻度后,擰緊螺母即可。 主要技術參數: 混合比:6:1-14:1 基料桶:55加侖(200L) 固化劑:5加侖(20L) MAX耗氣量:0.5m3/min 擠膠MAX工作壓力:20Mpa 供氣壓力:0.5-0.8Mpa 適用廣泛:手用膠,機用膠,本設備均可使用。 市面上的中空玻璃從單道密封轉向暖邊雙道密封如熱塑間隔條和超級間隔條的雙道密封。
4. The lifting system is controlled by manual rotary valve. The proportion of the two components can be adjusted by adjusting the position of the slider on the swing bar. When the required scale is reached, the nut can be tightened. Main technical parameters: mixing ratio: 6:1-14:1 binder barrel: 55 gallons (200L) curing agent: 5 gallons (20L) MAX gas consumption: 0.5m3/min extrusion MAX working pressure: 20Mpa air supply pressure: 0.5-0.8Mpa widely applicable: hand glue, machine glue, this equipment can be used. The hollow glass on the market in China has changed from one-way sealing to two-way sealing with warm sides, such as thermoplastic spacer and super spacer.
人們卻在探索研究開發一種全新的密封膠,對于中空玻璃設備的時候其既有常規熱融膠的生產方便的優點和水氣滲透率低的優點、又同時具有雙組份密封結構膠的優點。 說以在地域不同,加工中空玻璃的結構不同,使用的中空玻璃生產線也是不一樣的。在歐洲主要使用立式的中空玻璃生產線,而在北美,大部分則使用臥式的中空玻璃生產線 正德機器雙組份打膠機{雙組份涂膠機}是生產中空、幕墻玻璃的專用打膠設備。 它采用國際流行的靜態往復帶式混合器、配以獨特結構的單向針閥,使混合更均勻;特殊彈性材料的擠膠嘴,使中空玻璃的制作更加方便、簡潔、美觀。
However, people are exploring and developing a new type of sealant. For hollow glass equipment, it has the advantages of convenient production of conventional hot-melt adhesive, low water permeability and dual-component sealant. Say that in different regions, processing hollow glass structure is different, the use of hollow glass production line is also different. In Europe, vertical hollow glass production lines are mainly used, while in North America, most of them use horizontal hollow glass production lines Zhengde machine two-component gluing machine {two-component gluing machine} is the production of hollow, curtain wall glass special gluing equipment. It uses the international popular static reciprocating belt mixer, with a unique structure of one-way needle valve, so that mixing more uniform; special elastic material extrusion nozzle, so that the production of hollow glass more convenient, simple and beautiful.
